BAG PACKER UNIVERSAL"BPU" :
HIGH SPEED OPERATION : BPU has high speed upto 25 weighments per minute, depending on the material, material flow characteristic, weighment size and tolerance requirements.
HIGH ACCURACY : BPU has achieved accuracies as low as 10 grams standard deviation (1 sigma), depending on speed and material type.

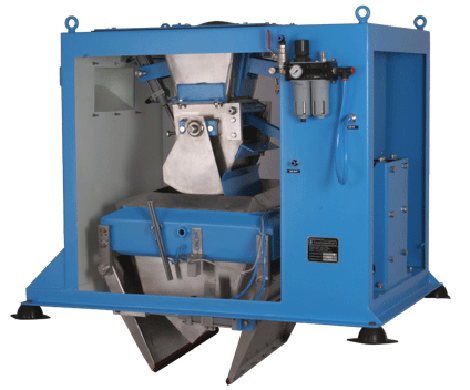

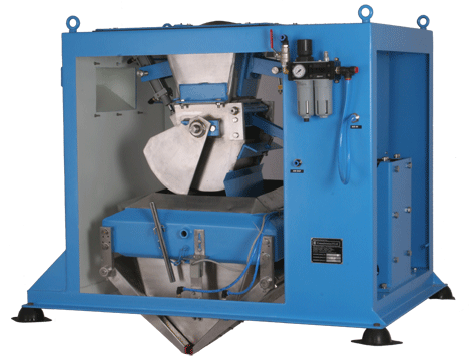

BPU (Bag Packer Universal) by Consultronics Private Ltd. enhances both performance and accuracy in Automatic Nett Bagging Weighers. Normal weighment range is from 10 kg to 50 kg.
UNIQUE LOAD CELL ASSEMBLY FOR HIGHEST PERFORMANCE :Single tension loadcell and unique cantilever suspension provides extremely accurate measurement and rapid response to weight / load changes. BPU has very few moving parts which provides a high degree of reliability and maintenance free operation. The loadcell assembly consists of single tension loadcell with overload protection stops in both overload and reverse load directions of movement. Furthermore the design obviates dust/dirt build up, friction wear and corrosion 'Traps'. Loadcell assembly is mounted on a large and heavy support base. This gives immense rigidity and doesn't make the loadcell deflect or shake under vibrations,giving a long term reliability. Loadcell and weigh pan sections are isolated from feed control section and downstream equipment vibrations by means of floor antivibration mounts giving very stable measurements. Isolation from weigh pan and feed control section minimises product contamination influences. Stiff cantilevered suspension of weigh pan to the loadcell assembly minimizes signal oscillation for faster stabilisation and a faster weighing cycle. For more technical details...
